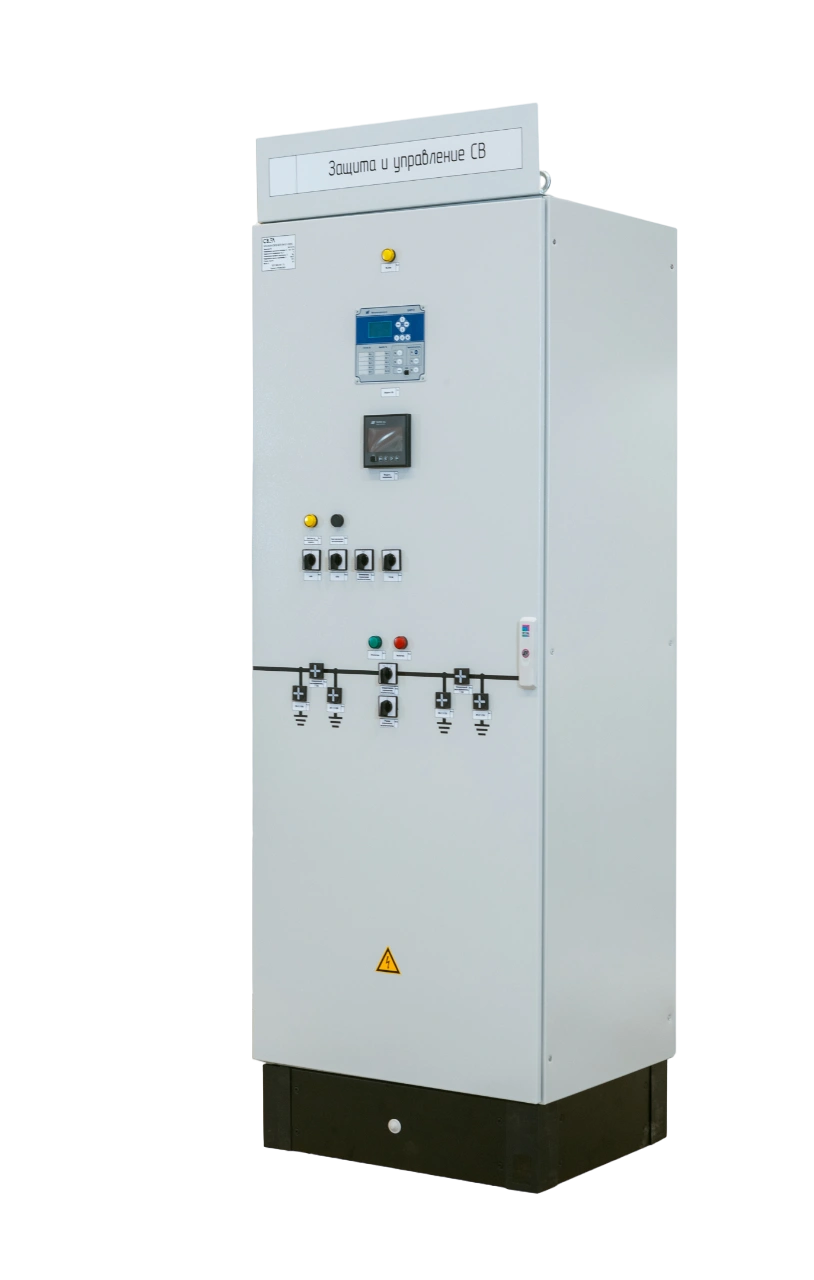

Switch Protection And Control Cabinet

Section Switch Protection And Control Cabinet is used for arrangement, protection and automation of section switch or busbar coupler. It can be used individually and within the set of ШЭ-СВЭЛ cabinets.

ШЭ-СВЭЛ-УА cabinet represents design with four walls which safely protect the content from all sides. Cabinet guarantees maximum current protection and ambient environment protection.

• Maximum current protection is a protection from short-circuits in the entire circuit. It has several levels, part of which can be set to standby status. They can automatically turn on in case of malfunctions.
• Pointed maximum current protection is a current protection, which reacts to short-circuit current power direction.
• Current cutoff is maximum current protection carried out on a separate protected circuit section.
• Negative sequence protection preserves network from overloads with negative sequence currents.
• Current open-phase protection safes connected to network mechanisms (such as electro-motors) from loss of phase in the circuit.
• Loss of mains protection is fitted for electro-motors safety during long-term or short-term voltage reduction in the network. It also allows to cut-off the engine after it went to generator mode and transferred the power in the network.

Automation functions:

• switch monitoring and control;
• backup under switch fault and automatic backup input;
• synchronization and electronegative gas pressure monitoring;
• ensuring automation of backup input and reclosure;
• voltage circuits control;
• monitoring of the switch and voltage regulator drive circuits condition.

Switch Protection And Control Cabinet assembly includes protection cabinet itself. It contains metal case, manual control and automation devices installed internally, clamps and bushings for cable connection. Keys for cabinets` door (1 pc per cabinet), spare parts, operation documentation and components (according to specification) are supplied with the cabinet. It can be equipped with protective screen; the size is indicated in Configuration Data Sheet.

Cabinet`s case is made of all-metal sheets and has several modifications. In particular, the cabinet can be made with one or two doors (one-sided or two-sided).

One-sided cabinet has one door located on the front wall of the cabinet. The back wall in this case is blind. Two-sided cabinet is made with front and back doors, it eases equipment arrangement. Doors can be opened to an angle of 110 degrees. The cabinet is equipped with mounting plate and detent.

Front door can be either solid or with a viewing window which allows to monitor equipment condition without door opening. Many of the sensor readings are also displayed directly on the front door and on the mimic diagram, if available (indicated in Configuration Data Sheet).

Design and internal equipment of the cabinet shall be selected according to site-specific conditions.

Section Switch Control Cabinet can be 2000х800х600mm and 2000х600х600mm. Mounting base or protective screen, when included in the design, can be 100mm or 200mm. All cabinet`s sizes are standard. Deviations from specified values can be implemented upon customer`s request.

Cable input can be located below or above. Auxiliary supply voltage =220V, =110V or ~220V.

Control panel may include:

• control key and switch position indication,
• control mode selector,
• control key and circuit-breaker position indication (earthing blade),
• circuit-breaker position indication (earthing blade),
• multifunctional measuring device,
• digital voltmeter with voltage selector switch,
• OLTC control with position indicator (resistive sensor, selsyn transmitter, BCD).

The communication interface with the automatic control system is also variable. Depending on the type, different communication cables can be used. For MODBUS-RTU, GOST R IEC 60870-5-101-2006, GOST R IEC 60870-5-103-2005 RS-485 cables. For MODBUS-TCP, GOST R IEC 60870-5-104-2005 and IEC 61850 (MMS, GOOSE) standard Ethernet 10/100 BASE-TX or fiber optic Ethernet 10/100 BASE-FX. ТХ cable provides a reliable signal transmission range of up to 100m, fiber optic FX cable increases this distance to 2km and has carrying capacity 100MB per second.

• Durability of Section Switch Protection and Control Cabinet. Subject to required technical maintenance measures and materials and components with shorter service life replacement, the cabinet`s service life will be more than 25 years.
• Low prices on Switch Protection and Control Cabinet from the manufacturer. By buying equipment directly from us, you avoid the intermediate seller`s extra charge.
• High quality of the design. We strictly adhere to all government standards for cabinet manufacturing and Customs Union`s requirements (004/2011). All work is done only with modern equipment, quality control is performed on each production stage.
• High quality of the design. Quality control is performed on each production stage and all government standards for cabinet manufacturing are adhered.
• High level of the quality control. On customer`s request we can perform the final operations control room assembling in the presence of customer`s representatives; also we provide the opportunity to attend the acceptance test.
• Quick lay out of the project. Top solutions and large number of implemented complex ready-to-operate substation projects.
• SVEL perform the whole range of works on manufacturing, assembly and arrangement of the cabinet. You are only required to specify the design parameters.

SVEL delivers equipment across Russia and CIS countries. Switch Protection and Control Cabinet delivery can be carried out by land, water or air transport. It is located on a pallet or in a plywood box in case of land and air transportation. When shipped by sea, it is placed in a panel box.

Section Switch Protection and Control Cabinet`s price depends on technical parameters, optional features and delivery region.

For Section Switch Protection and Control Cabinet order, leave an application on the web-site. Configuration Data Sheet filling (in the application) will speed up the consideration of order details.
